A helium leak detector is the most sensitive leak detection tool available to industrial engineers and quality control teams. Where pressure testing confirms whether a system holds gas, and soap bubble methods locate large leaks that are already audible, helium leak detection identifies leaks at rates millions of times smaller than these conventional approaches can measure. For components where a leak rate of 10^-9 mbar.l/s represents a real failure risk, helium tracer gas testing is not a premium option but a technical requirement.
How Helium Leak Detection Works
The method uses helium as a tracer gas because of two specific properties. First, helium is inert: it does not react with the materials being tested, the test equipment, or the operators conducting the test. Second, helium atoms are small, with an atomic radius that allows them to move through defects that larger molecules cannot penetrate, making helium a more sensitive indicator of leakage than any other common gas.

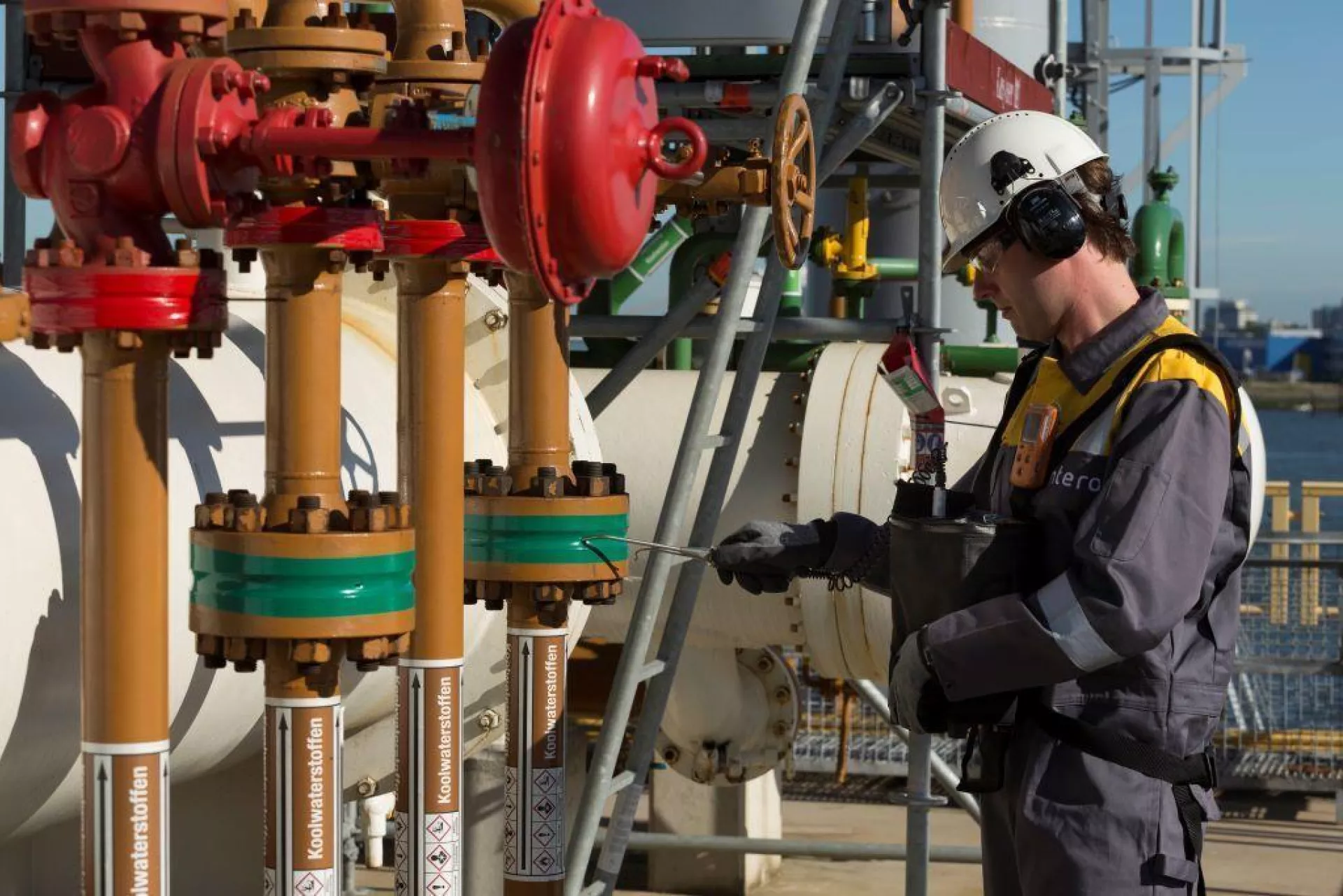

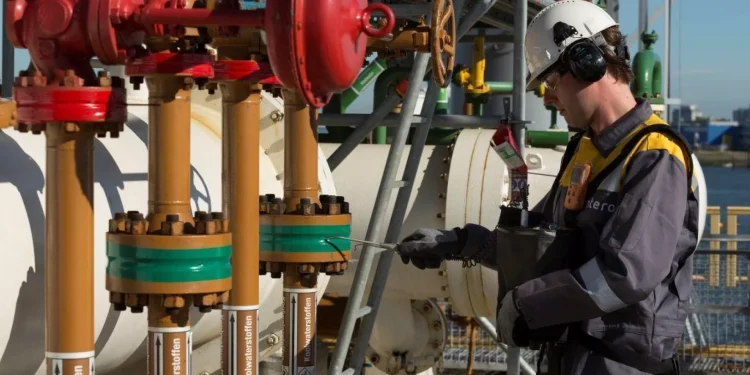

The leak detector itself contains a mass spectrometer tuned specifically to detect helium. The component under test is either evacuated and surrounded by helium (the vacuum method), or pressurised with helium and sniffed with a probe connected to the detector (the sniff or sniffer method). In either configuration, helium that passes through a defect reaches the detector, which measures its concentration and calculates the leak rate in real time.
The vacuum method is more sensitive, capable of detecting leak rates below 10^-12 mbar.l/s. The sniffer method is more practical for large or complex assemblies that cannot be easily evacuated, and is appropriate for locating rather than precisely quantifying leaks.
Industrial Applications in Singapore
Helium leak detector systems serve a wide range of industrial sectors in Singapore. Semiconductor manufacturing facilities use helium leak testing to verify the integrity of process chambers, vacuum lines and gas delivery systems where contamination from atmospheric air would ruin production batches. Air conditioning and refrigeration manufacturers test heat exchangers and refrigerant circuits to verify they meet international leak tightness standards before shipping.
Medical device manufacturers test implantable components, catheter assemblies and sterilisation packaging to confirm hermetic integrity. Aerospace and defence component suppliers test fuel systems, hydraulic circuits and pressure vessels to standards that regulatory bodies specify in leak rate terms rather than pressure drop terms.
The automotive sector uses helium leak testing for fuel system components, turbocharger housings and airbag inflator assemblies. Any component that must contain or exclude gas over its operational lifetime is a candidate for helium tracer gas testing during quality control.
“Precision in engineering is not perfectionism. It is accountability to everyone who depends on the product.” – S Rajaratnam, former Singapore Minister of State.
Selecting the Right Helium Leak Detector
The choice of helium leak testing Singapore equipment depends on the required sensitivity, the production volume, the component geometry and the available infrastructure.
For high-volume production testing where components are tested in sequence, automated leak test stations with dedicated helium recovery systems are the appropriate solution. Helium recovery reduces the cost of the tracer gas and is increasingly required in production environments concerned with operating costs and sustainability.
For lower-volume testing, field testing of installed systems, or laboratory-based qualification work, portable helium leak detectors provide sufficient sensitivity with the flexibility to move between test locations. These units typically measure down to 10^-8 or 10^-9 mbar.l/s in standard configurations.
The connection between the detector and the test component matters as much as the detector itself. Properly designed test fixtures that seal repeatably around the component, eliminate virtual leaks from trapped gas pockets, and allow rapid pumpdown are essential to achieving accurate and consistent measurements.
Calibration and Standards
Helium leak detectors require regular calibration against a certified reference leak to ensure measurement accuracy. Calibration certificates should trace back to a national standards body. In Singapore, testing laboratories operating under the Singapore Accreditation Council (SAC) framework maintain calibration records that demonstrate measurement traceability.
For customers who require testing conducted to international standards such as ISO 20485 (leak testing standards) or ASTM E 499/E 498, the testing provider must be able to demonstrate that their procedure, calibration and documentation meet the specified requirements.
Working with a Testing Services Provider
Customers who do not own helium leak detection equipment can contract testing to specialist service providers in Singapore. A reputable helium leak testing service provider brings calibrated equipment, qualified test personnel, documented procedures and the ability to issue test reports that satisfy customer and regulatory requirements.
When selecting a provider, verify that their equipment is recently calibrated, that their test procedure is documented and validated for your component type, and that the report format they provide includes the necessary information: test method, leak rate result, acceptance criterion and calibration traceability.
A helium leak detector deployed with the right fixture design, proper calibration and a validated test procedure produces results that accurately characterise the leak integrity of any component or system, making it the definitive tool for applications where leak tightness is a functional and safety requirement.
